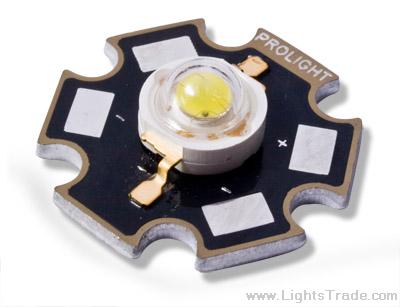

Proeon Series

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : T/T

Departure Port : Taiwan

Product details

Supply Ability

Supply Ability： piecesWarranty(Year)：1 Year

Packaging & Delivery

Packaging： piece

Product Specifications

Product Description

High junciton temperature: 120°c
Storage and operating temperature:- 40 to +105
Compatible with IR reflow soldering processes:PM2L Series only
Super wide viewing angle:130°
Best moisture sensitivity level:JEDEC 2a
Superior ESD protection

1 Watt Proeon

Part No.	Flux(lm)	If=[mA]	Vf(V)	CCT/λd(nm)	2θ? [°]
PM2B-1LWE	105	350	3.5	4100~10000K	130°
PM2B-1LVE	98	350	3.5	2700~4100K	130°
PM2B-1LBE	20	350	3.5	455~475nm	130°
PM2B-1LGE	70	350	3.5	515~535nm	130°
PM2B-1LAE	55	350	2.2	587~597nm	130°
PM2B-1LRE	48	350	2.2	613.5~631nm	130°
PM2B-1LCE	57	350	3.5	495~515mm	130°
PM2B-1LDE	470 mW	350	3.5	450~460mm	130°

3 Watt Proeon

Part No.	Flux(lm)	If=[mA]	Vf(V)	CCT/λd(nm)	2θ? [°]
PM2B-3LCE-SD	95	700	3.9	495~515mm	130°
PM2B-3LDE-SD	800 mW	700	3.8	450~460mm	130°
PM2B-3LWE-SD	179	700	3.8	4100~10000K	130°
PM2B-3LVE-SD	166	700	3.8	2700~4100K	130°
PM2B-3LBE-SD	35	700	3.8	455~475nm	130°
PM2B-3LGE-SD	120	700	3.9	515~535nm	130°
PM2B-3LAE-SD	103	700	2.7	587~597nm	130°
PM2B-3LRE-SD	86	700	2.7	613.5~631nm	130°
